Impulse Voltage

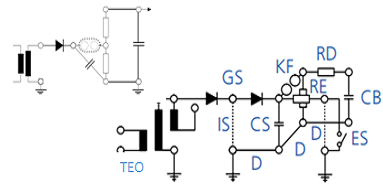

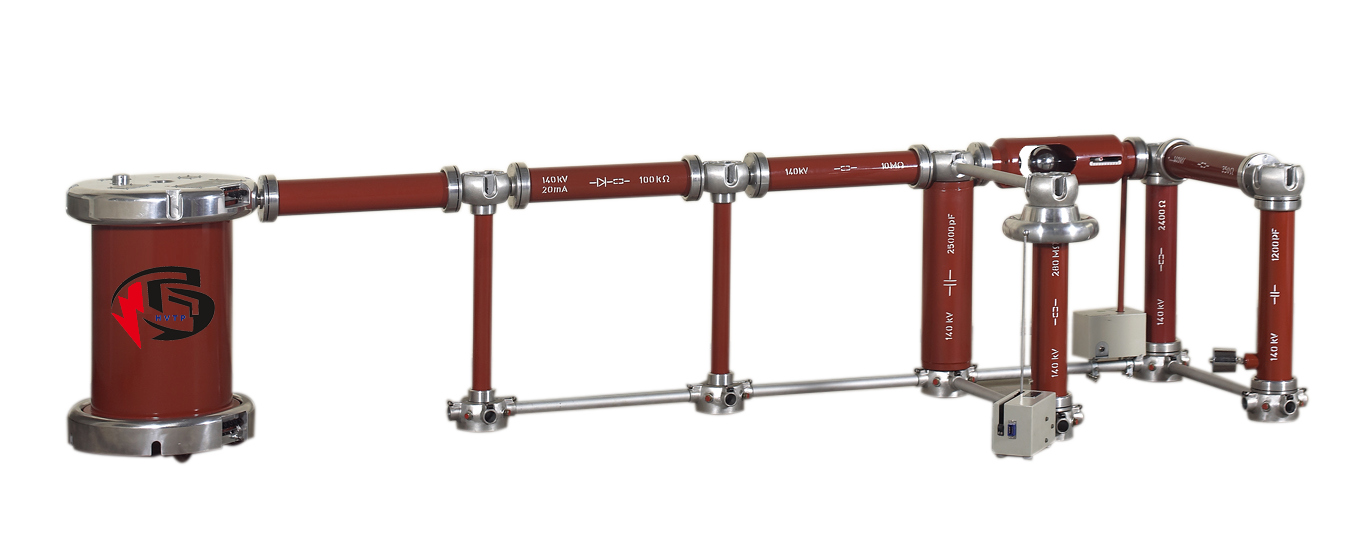

Impulse Single Stage
| Single Stage | TEO 100-10 |
|---|---|
| Rated DC Charging Voltage [kV] | 140 kV |
| Rated Impulse Voltage [kV] | 140 kV |
| Maximum stored energy with: 1.CS 25 (25nF) 2.CS 50 (50nF) 3.CS 100 (100nF) |
245 J 490 J 980 J |
| Voltage Efficiency (Approx.) | 92% |

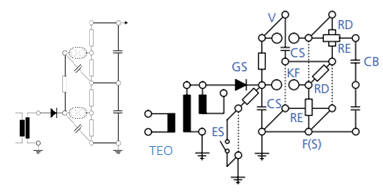

Impulse Two Stage
| Two Stage | TEO 100-10 |
|---|---|
| Rated DC Charging Voltage [kV] | 140 kV |
| Rated Impulse Voltage [kV] | 280 kV |
| Maximum stored energy with: 1.CS 25 (25nF) 2.CS 50 (50nF) 3.CS 100 (100nF) |
490 J 980 J 1.96 J |
| Voltage Efficiency (Approx.) | 92% |

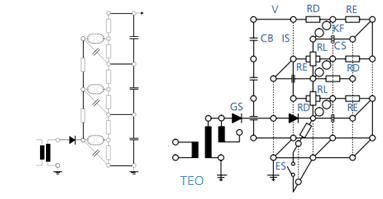

Impulse Three Stages
| Three Stage | TEO 100-10 |
|---|---|
| Rated DC Charging Voltage [kV] | 140 kV |
| Rated Impulse Voltage [kV] | 420 kV |
| Maximum stored energy with: 1.CS 25 (25nF) 2.CS 50 (50nF) 3.CS 100 (100nF) |
735 J 1.47 J 2.94 J |
| Voltage Efficiency (Approx.) | 92% |
